2. Parts
  3. Model 10361 - Serial 220000001 - 220999999

Silver Series Lawnmower

Product Information

  • Model #: 10361
  • Serial #: 220000001 - 220999999
  • Product Type: Walk Behind Mowers

  • Model #: 100-6361
    Replacement Rear Bag
  • Model #: 215326
    Lawn-Boy Walk Mower Cover
  • Model #: 490-7463
    Plain Walk Mower Cover
  • Model #: 89812
    SD Cover Plate
  • Model #: 89816
    Replacement Side Bag
  • Model #: 89817
    Side Bag Kit
  • Model #: 89860
    Leaf Shredder
  • Model #: 89864
    Mulch Plate
  • Model #: 89906
    Rear Bag Kit
  • Model #: 95-3282
    Mower Washout Port Kit (STD on 38" Mower)

  • Model #
    10361
  • Serial #
    220000001 - 220999999
  • Product Name
    Silver Series Lawnmower
  • Product Brand
    Lawnboy
  • Product Type
    Walk Behind Mowers
  • Product Series
    21" Steel Deck
  • Chassis Type
    Steel Deck WPM
  • Swath
    21 inch
  • Discharge
    Mulcher
  • Engine/Motor Manufacturer
    Tecumseh
  • Engine/Motor Size
    5 hp
  • Engine/Motor Type
    4 Cycle CARB1, EPA1
  • Engine Starter

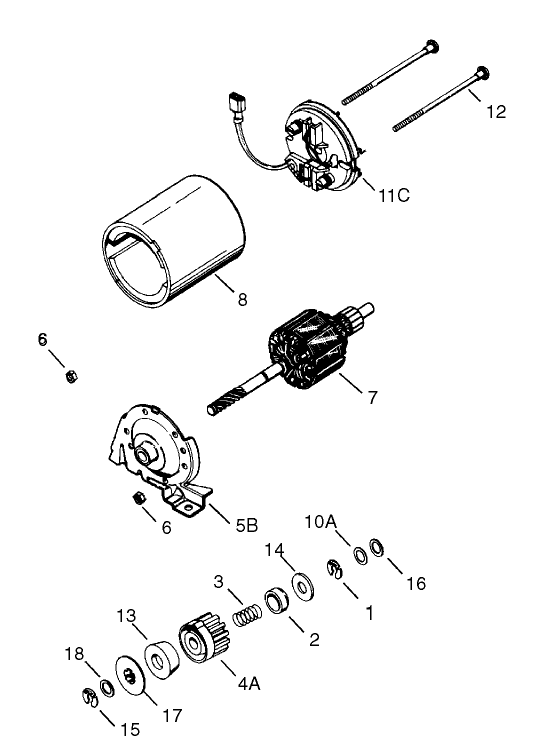

    Electric
  • Transmission Type

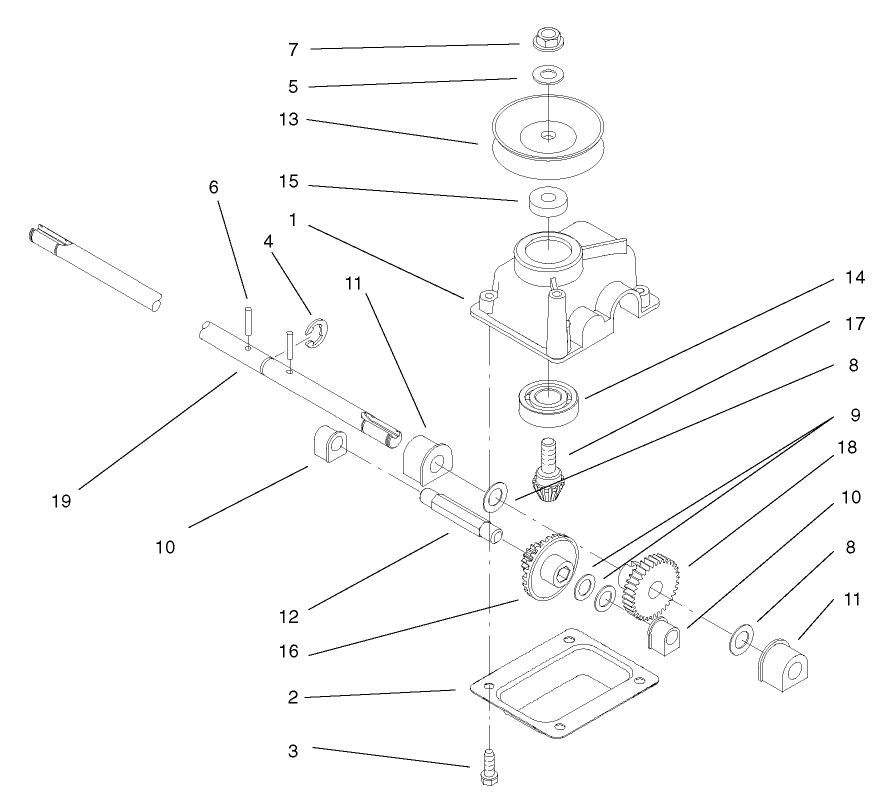

    Gear

  • Chassis: Height of Cut Range
    1-3.5"; 1/2" increments
  • Drive System: Gearbox Lubricant
    3 oz. (85gm) #2 Lithium grease
  • Drive System: Ground Speed
    2.6 mph
  • Engine: Engine Oil Type
    20 oz. (.6l) 30w or 10w-30 / API SH or higher
  • Engine: Engine Speed
    3000±150 RPM
  • Engine: Ignition Coil Air Gap
    .012" / .3mm
  • Engine: Spark Plug
    Champion RJ19LM
  • Engine: Spark Plug Gap
    .030"/ .76mm
